The Tiny Sensor in Your Mirror That Does More Than You Think

Most of us have bumped a side mirror at some point. A tight garage, a narrow track, an overeager reverse park. We shrug it off. The glass didn’t crack, the rest of it is just aesthetics, right? But what if that mirror housed one of the most important sensors in your entire vehicle?

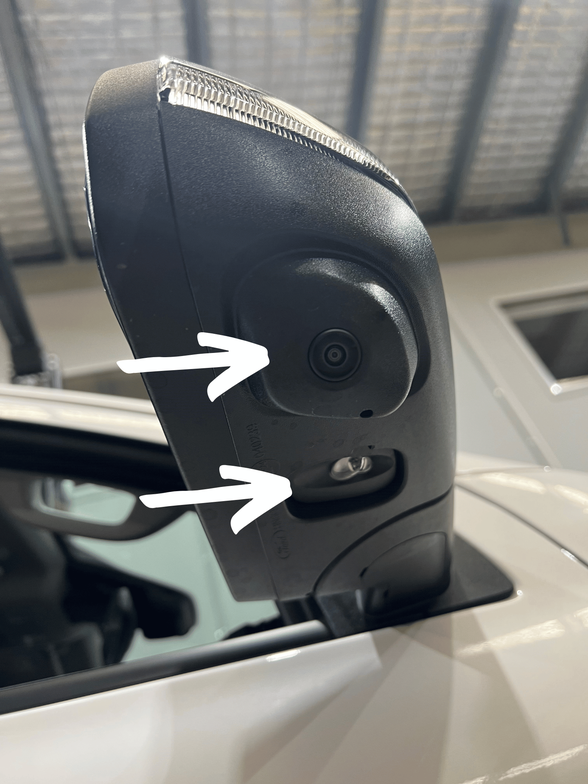

On the next-generation Ford Ranger and Ford Everest, it does. Tucked beneath the side mirror sits a small component called the Outside Air Temperature (OAT) sensor. It looks unremarkable. And yet, without it, several of your vehicle’s smartest features simply stop working properly.

What Exactly Does the OAT Sensor Do?
At its most basic, the OAT sensor measures the ambient air temperature outside your vehicle. That’s the number you see on your dashboard display.
According to Sandy Fragapane, Ford’s Climate Control Attribute supervisor for ICE Propulsion and Thermal Systems, the sensor is “one of the most important sensors” on these vehicles. “Without the information gathered by the temperature sensor, features like the front and rear parking sensors and the air-conditioning system wouldn’t function properly. It really is that critical.”
What could air temperature possibly have to do with parking?
The answer lies in physics. Your parking sensors work by emitting ultrasonic sound waves — pitched too high for human ears to detect. Those waves bounce off nearby objects and return to the sensor. By measuring how long that round trip takes, the system calculates the distance to a wall, a pole, or the car behind you.
But sound doesn’t travel at a fixed speed. It moves faster through warm air and slower through cold air. So on a hot summer afternoon, the “ping” returns quicker than it would on a frosty winter morning — even if the object sits at exactly the same distance.
Without knowing the outside temperature, the system would miscalculate and the distance shown on your screen could be wrong. As Fragapane explains, “the temperature sensor tells the system how hot or cold it is so the distance can be calculated in real time.”
Your Climate Control Runs Smarter Because of It
Switch your climate control to auto mode and the vehicle takes over. The fan speeds up, slows down, warms or cools the cabin to hold your preferred temperature. That effortlessness relies on the OAT sensor.
Knowing the outside temperature lets the system work out exactly how much heating or cooling the cabin needs — and how to achieve it using the least amount of energy. On a 40°C day, the system knows to work harder. On a mild morning, it eases off.
As Fragapane puts it: “The outside air temperature sensor tells the driver what the ambient temperature is, but the way the vehicle uses this information goes way beyond that.”

Why Hide It Under the Mirror?
To measure ambient temperature accurately, the sensor needs to be shielded from anything that would skew the reading. Bolt it near the engine and it picks up radiated heat. Leave it in direct sunlight and it bakes. Expose it to driving rain and it reads cold and wet, not the true air temperature.
The underside of the side mirror solves all three problems at once. Fragapane confirms that: “Placing the temperature sensor beneath the side mirror means it’s away from hot engine parts, and out of direct sunlight and rain which can all skew the accurate measurement of the ambient temperature.”
The sensor connects directly to the vehicle’s powertrain control module (PCM), feeding its readings to every system that depends on accurate ambient data.

So, What Happens When You Fit Towing Mirrors?
If the OAT sensor lives in your factory mirror, and you replace that mirror with a towing mirror, what happens to the sensor? Do your parking sensors start miscalculating? Does your climate control lose its edge? Does the dashboard show the wrong temperature?

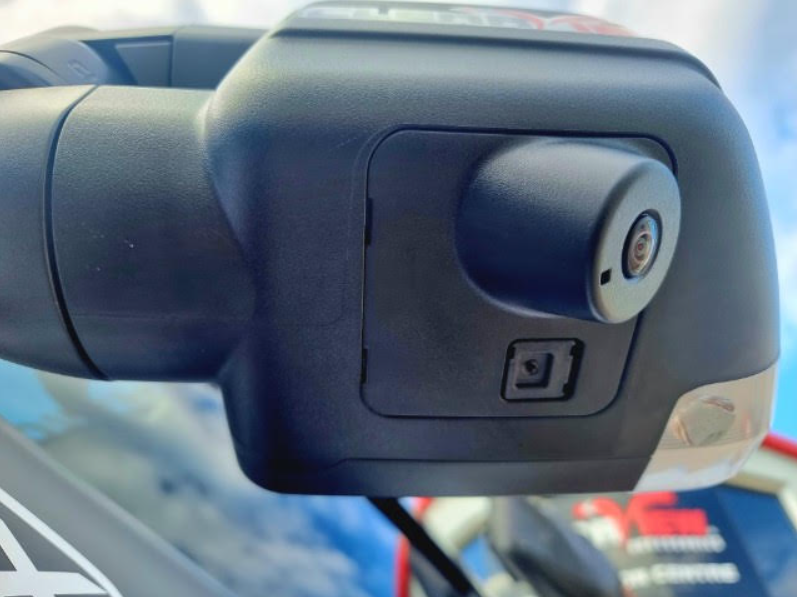

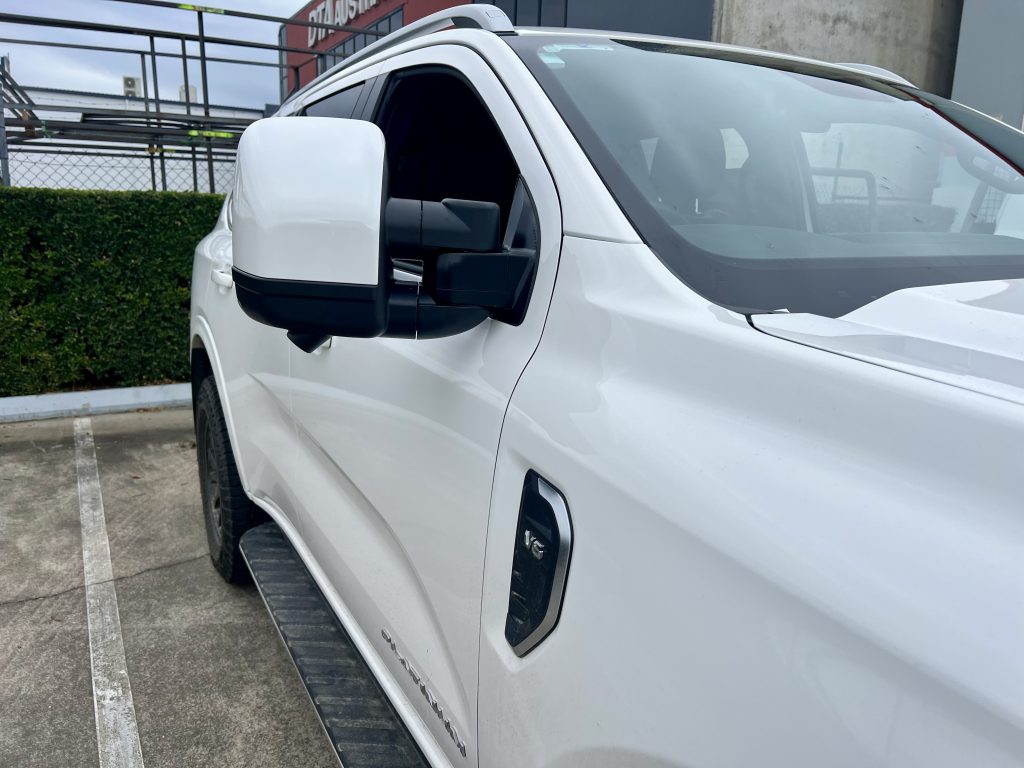

When you fit a Clearview towing mirror to a vehicle equipped with a factory OAT sensor, the sensor is relocated from the original mirror into the Clearview mirror. It stays in the same protected environment — shielded from heat, sun, and rain — and remains connected to your vehicle’s systems exactly as the manufacturer intended.

The result? Your parking and clearance sensors keep calculating distances accurately. Your automatic climate control keeps running efficiently. Your dashboard keeps showing the correct outside temperature. The factory functionality stays intact.
When you tow, you’re already asking a lot of your vehicle. Fitting towing mirrors that safeguard your factory sensors is the standard you should expect. That’s the standard Clearview builds to. Because keeping you safe on the road means keeping the systems that protect you intact — right down to the smallest sensor in your mirror.
